The Replicator™ .

a multi-frequency, multi-system GNSS simulator for advanced R&D, equipment testing and education,

it can also function as a recording, playback and signal analysis instrument.

Some of the advantages

1. User defined models with ANSI C API.

2. Real-time simulation

3. Record and playback

4. GNSS signal analysis

5. Upgradable to more features , signals and frequencies for the difference in price.

iP-SOlutions, Japan GNSS, GPS, GLONASS, BeiDou, Galileo multi system, dual frequency RF simulator,recorder,playback

Components:

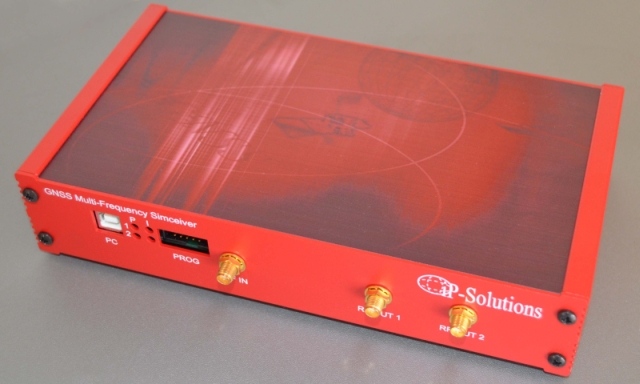

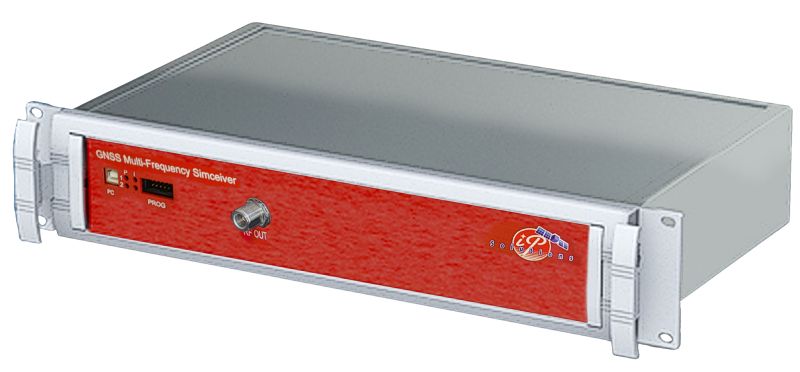

1) Simceiver™ hardware device,

2) ReGen™ control software for real-time simulation,

3) Streamer software for recording and playback,

4) ARAMIS™ software receiver for signal analysis.

The Replicator™ is a result of our 7-year work for and collaboration with the Japan Aerospace Exploration Agency (JAXA).

iP-SOlutions, Japan GNSS, GPS, GLONASS, BeiDou, Galileo multi system, dual frequency RF simulator,recorder,playback

The ReGen™ is a control center software for multi-frequency, multi-system GNSS simulator. It is intended for advanced R&D, equipment testing and education.

It also allows off-line simulation of digitized GNSS signal, similar to those recorded from life satellites. The signal can be played back as RF at later time or analysed by MATLAB receiver.

Sreamer software can record and playback dual frequency GPS, GLONASS and BeiDou signals.

GPS GLONASS Galileo BeiDou QZSS recorder to record and playback GNSS RF signals and USB front end for SDR

- Real-time simulation of one of the follows :

dual frequency GPS, GLONASS, BeiDou or GPS+GLONASS, GPS+BeiDou, GPS+Galileo signals (see Table below for available signals).

- Comprehensive simulation models including atmosphere, multipath etc.(see ReGen datasheet)

- Record and playback dual frequency GPS/Galileo, GLONASS and BeiDou signals.

- Two or more units can be used to simulate, record and playback more signals at the same time.

- Signal analysis based on JAXA COSMODE ionospheric scintillation monitor.

- Simulated and recorded signals can be stored in digitized format , analysed by a MATLAB software receiver and played back as RF at any time.

Versions (see details )

Standard

Professional

Single channel simulator with custom Doppler profile simulation.

Development with API

ANSI C API allows to modify existing or implement custom models for signal simulation .

iP-SOlutions, Japan GNSS, Reference Station Receiver Data Generator allows to generate raw data and then RF signals for up to four locations with spatially correlated models.

Reference Station Receiver Data Generator allows to generate raw data and then RF signals for up to four locations with spatially correlated models. The signals can be played back as RF signals. This option is useful for RTK, VRS or LAAS simulation.

Simceiver™ AG hardware option supports E5, L5 signals with 24-MHz bandwidth.

Eagle front end allows to record two L1 signals GPS/Galileo + GLONASS /BeiDou, which can be played back with the Replicator™.

Power control

Real-time between channels 20 dB

Resolution 1 dB

Signal quality

In-band spectral purity less than -30 dBc

Harmonics less than - 35 dBc

Signal bandwidth: 8 MHz (24 MHz for AG)

Connectors

RF IN , RF OUT SMA female,

USB-2 Bi-directional to Host PC

Trigger, 1 PPS IN, OUT Yes

External clock IN, OUT SMA female , 10 MHz.

Power 5 VDC , less then 3 W

Accuracy

Code phase less than±10 cm RMS

Carrier phase less than±5 cm RMS

Time base OCXO option

Aging ±2 ppb/day

Stability ±10 ppb over -20º C to +70º C

Environmental

Operating temperature +10~40℃

Operating humidity 40~90%RH(non-condensing)

Dimensions 200×120×70

Weight w/o control PC less than1 kg

Control software

Windows OS

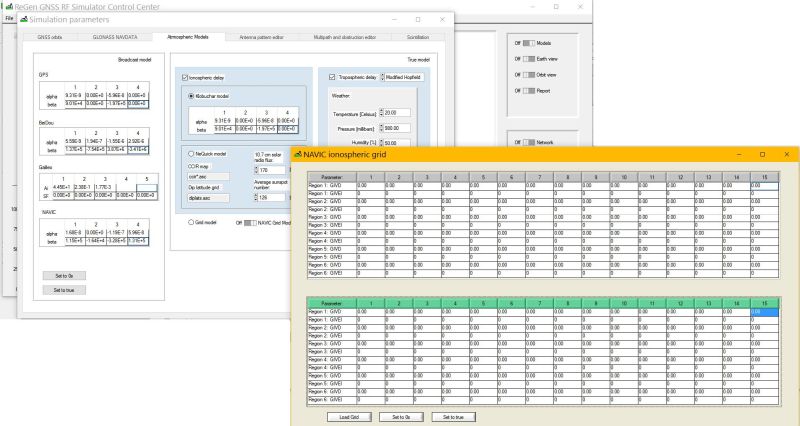

Ionospheric models

Klobuchar

NeQuick

ionospheric gradient error editor

scintillation simulation

TEC depletion simulation

fault scenarios (FAA CAT-1 LAAS)

Tropospheric models

Saastamoinen

Hopfield

Black

Miscellenious models

step, ramp, acceleration code and carrier errors

orbital parameters (true and broadcast)

navigation message parameters and bits

antenna pattern editor

multipath simulation

Dynamic user simulation

GNSS network simulation

Read our articles on simulation:

GNSS Simulation: A User’s Guide to The Galaxy

GPS simulation

Testing Multi-GNSS Equipment: Systems, Simulators, and the Production Pyramid

GNSS Simulators: Everything You Always Wanted to Know But Were Afraid to Ask

GPS simulation

JUST RELEASED: v2016-03-2 See what's new

Registered users can download the latest version of Replicator control software from here:

Drivers (no registration required to download):

* 32-bit driver for Windows

* 64-bit driver for Windows

Available options :

Signal Simulation Record & playback Analysis
GPS L1 C/A L1, L2 L1
Galileo E1 E1 E1
GLONASS L1,L2 L1,L2,L3 L1,L2
BeiDou B1 B1,B2 -
features of budget, inexpencive, economical GNSS RF Signal Simulator and Playback

You can add features to your solution at later time when you need them or when they become available.

Replicator test with U-Blox GPS receiver:

Replicator screenshot after 4 hour operation:
